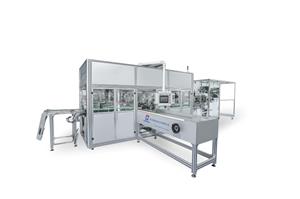

Fully Auto Horizontal Stacking Underpads Packing Machine

Under full-auto. operation, the machine will be able to carry out product catching, compression, piece counting, stack pushing, bag opening and bag filling procedures followed by trim clearing. These sealed packaged products would be delivered out along the conveyor belt.

Mechanical Features

1.   Innovative gusset-folding technology with exclusive patent right

With the accuracy to ensure the shaping up of smooth and delicate gusset, the servo controller angular device is adaptable to various packaging specifications.

2.   Changing of different size pusher is not needed

Quick switching process of the product specification for packing with strong applicability.

3.   Adopts a new modular design concept, full servo design

With full-servo design & multi-cam linkage servo control technology to ensure that all action is kept to the smoothest and shortest time required during production.

4.   Multi-servo drive and high mechanical stability

The adaption of Mitsubishi or AB motion-controlled PLC and Bus Servo System ensures the stability and efficiency of production, with the qualified rate reaching as high as 99%.

5.   Extensive applicability, with fine and firm sealing

The machine is applicable to pack over 95% of the mainstream products in this line, including diapers, elastic diaper pants, pet underpads, underpads and various bags and pouches, etc., with precise and firm sealing.

6.   Shortest packaging length requirement

Unique production technology adopted, with short packaging length requirement to reduce the cost by large margin.

7.   Human-machine interaction system

Various product parameters can be preserved and saved in the machine, and retrieved easily when needed.

Pitcture Preview:

Video Preview:

Technical Parameters：
