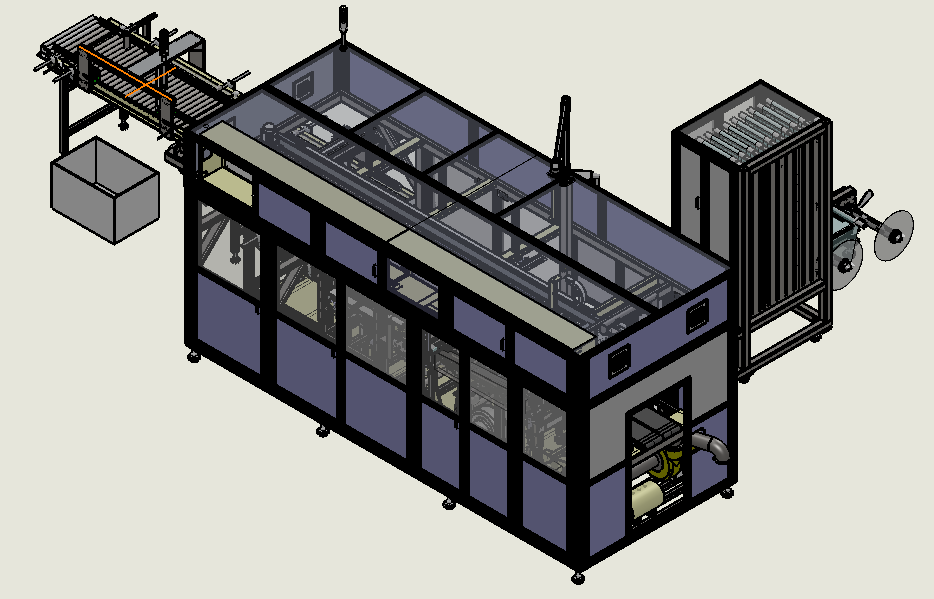

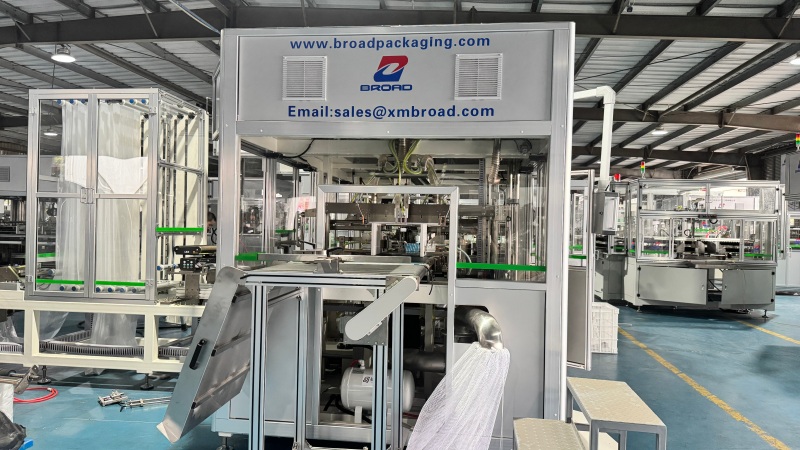

The High Speed Fully Automatic Bundler Machine accepts already sealed small packs from the upstream small‑packaging machine via a connecting conveyor. These individual packs are then aligned and arranged in a specified bundle count (e.g., 5, 10, or 20 packs per bundle). Under fully automatic operation
Mechanical Features
1. Infeed & Alignment – Small packs are transferred onto the bundler infeed conveyor and guided into a collating area where they are arranged side‑by‑side or stacked to form a uniform bundle batch.
2. Pushing & Bag Opening – The complete bundle batch is pushed into a pre‑opened large bag.
3. Bag Filling & Sealing – After the bundle is fully inserted, the large bag is sealed .
4. Tail Clearing – Any excess bag tail or trim is removed.
5. Output – The finished bundled package (multiple small packs inside one large bag) is discharged onto an outfeed conveyor, ready for bulk shipment.
Technical Parameters：
Device No. BRD008
Production Rate | 20-25 packs/min |
| Applicable Packaging Specifications: | width：160～500 mm height：160～320 mm length：180～800 mm |
| Texture of Bags: | OPP、PE, composite film bag, aluminium film bag |
| Electrical System: | Motion controlled system, HMI touch screen, servo drive (9 axis) |
| Installed Power: | 17 kw |
| Power Requirement: | 380V/50HZ 10㎜²5-core power cord |
Air Pressure Requirement: | 0.5Mpa |
